Wolf Tooth won't try to convince you that elliptical (or oval, the same thing) chainrings will change your life...but they might! What they can say for sure is that they can provide an efficiency benefit and smoother power output. With this, you will experience the benefits of better traction, especially with technical climbing, and faster acceleration.
Their proprietary design has ovality of 10% and timing of 112° after TDC (top dead center). These values provide the benefits of an oval ring without the drawbacks of greater ovality or more aggressive timing.
The simplest way to explain how they "feel" is that where your pedal stroke is weakest it feels like you have a 2 teeth less on the chainring and where you have the most power it feels like you have 2 more teeth. They feel this way because with the radius of the chainring constantly changing, the torque needed to turn the cranks is constantly changing to better match your power output. Example: a 34t chainring feels like a 32t in the weak part of your pedal stroke and a 36t in the part of the stroke where your legs have the most power.

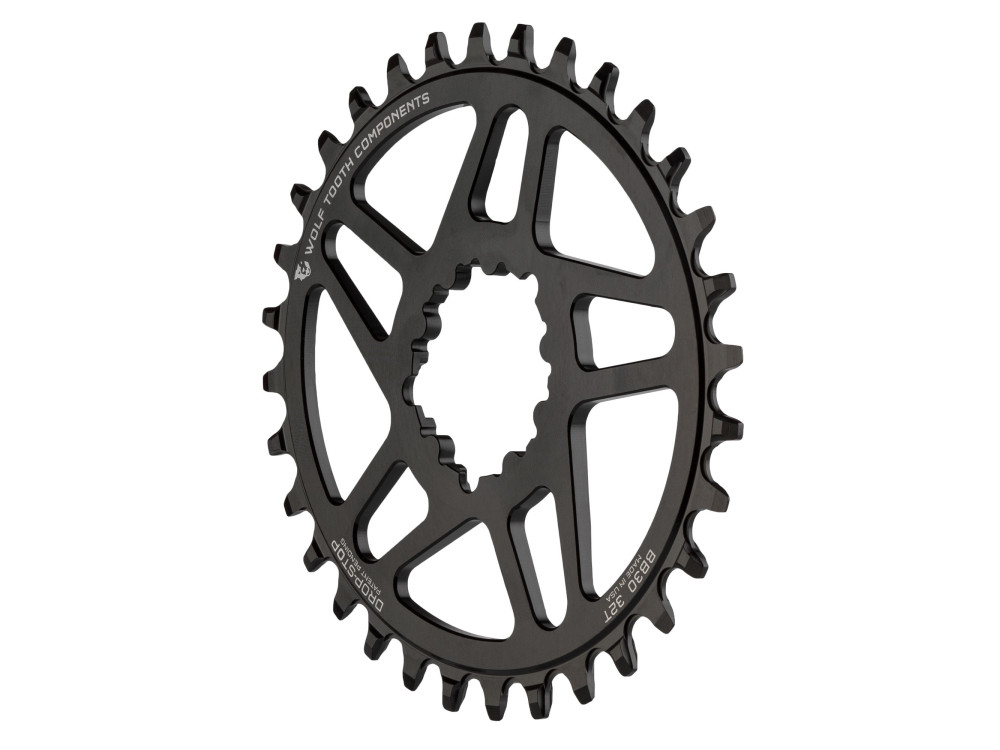

- These are 0mm offset flat direct mount chainrings to fit SRAM cranks.

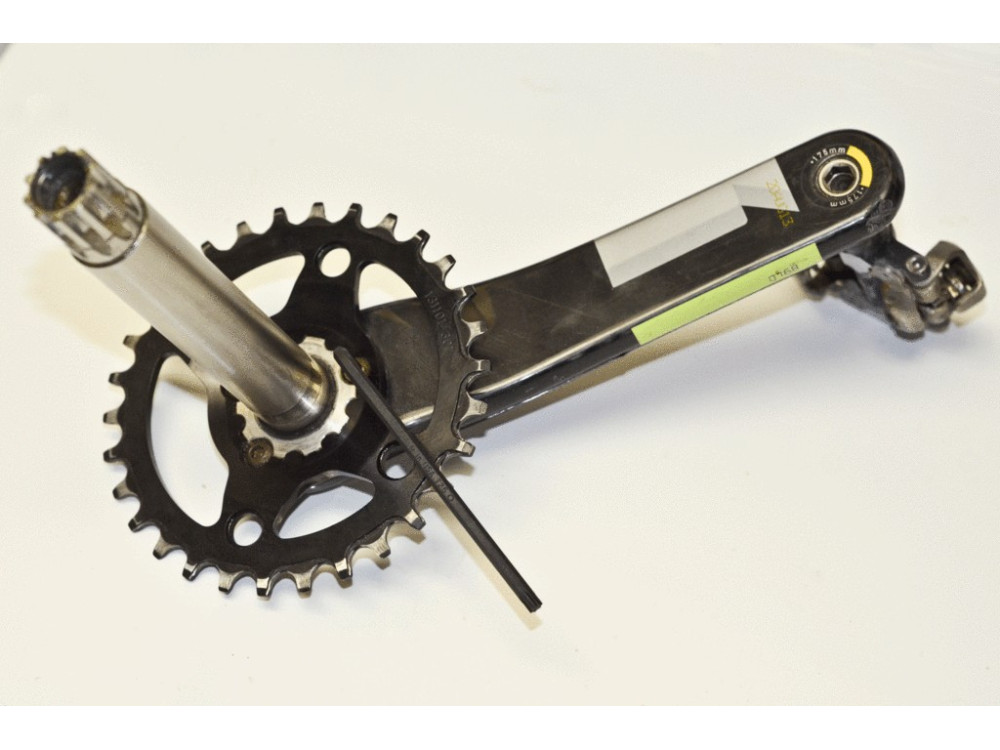

- These direct mount chainrings will replace your existing chainring and spider, which is attached via 3 bolts on the back side of the spider near the spindle. You will use these same 3 bolts to attach the Wolf Tooth SDM (TM) chainring.
- Provide a great chainline on most boost bikes. See this explanation for details.
- They only fit on BB30 short spindle SRAM cranksets
- The ONLY exception to mounting them on a BB30 short spindle is when using a Fat Bike crankset (X9 or XX1) designed for a 170mm spaced rear hub on a 190mm space rear hub bike. Check out this explanation of chainline and hub spacing.

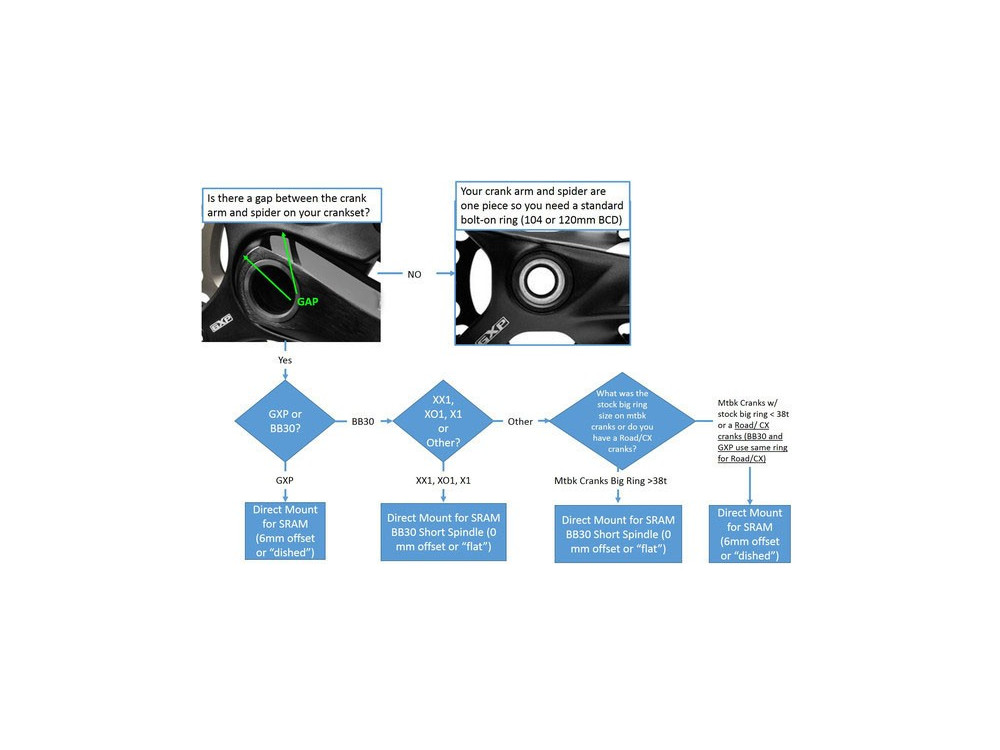

- This decision tree will help you determine if you have a removable spider, and if you do what ring you need for your cranksets (there are 2 different ring offsets used by the BB30/PF30 cranksets):
- You will need chainring to chainstay clearance for a chainring 2 teeth bigger than the Elliptical chainring (max diameter is that of a chainring 2t bigger).
- For 1x9, 1x10, or 1x11 drivetrains
- Compatible with all 10 and 11 speed chains.
- If using a 9 speed drivetrain use a 10 speed chain (shifts and works well on a 9 speed drivetrain and fits the ring tighter for better chain retention).
Complimenting Products:
- Wolf Tooth recommend using a T25 L-Wrench for removal and installation of the bolts.
- The stock bolts are easily damaged when removing them to install a direct mount chainring. So go easy on them.
Tech Specs:
- Design and manufactured in the Minneapolis, MN USA
- Wolf Tooth’s patent pending Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- Recommend the use of a clutch style rear derailleur for the best chain security.
- Material 7075-T6
- Colors - black
- Chainline - 50mm
- Ovality of 10% and timing of 112° after TDC (top dead center)
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
- If you plan to ride in very muddy conditions, Wolf Tooth recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur! Without these precautions, you may experience chaindrops and/or chainsuck.
- A T25 Torx wrench is required to remove the bolts that secure the the chainring or spider to the crankarm.
- An L-wrench works best since the crank spindle may contact a socket adapter and prevent it from engaging properly.
- Use the same 3 bolts to attach the Wolf Tooth ring.
- Weight - 28t - 60g, 30t - 68g, 32t - 74g, 34t - 83g
